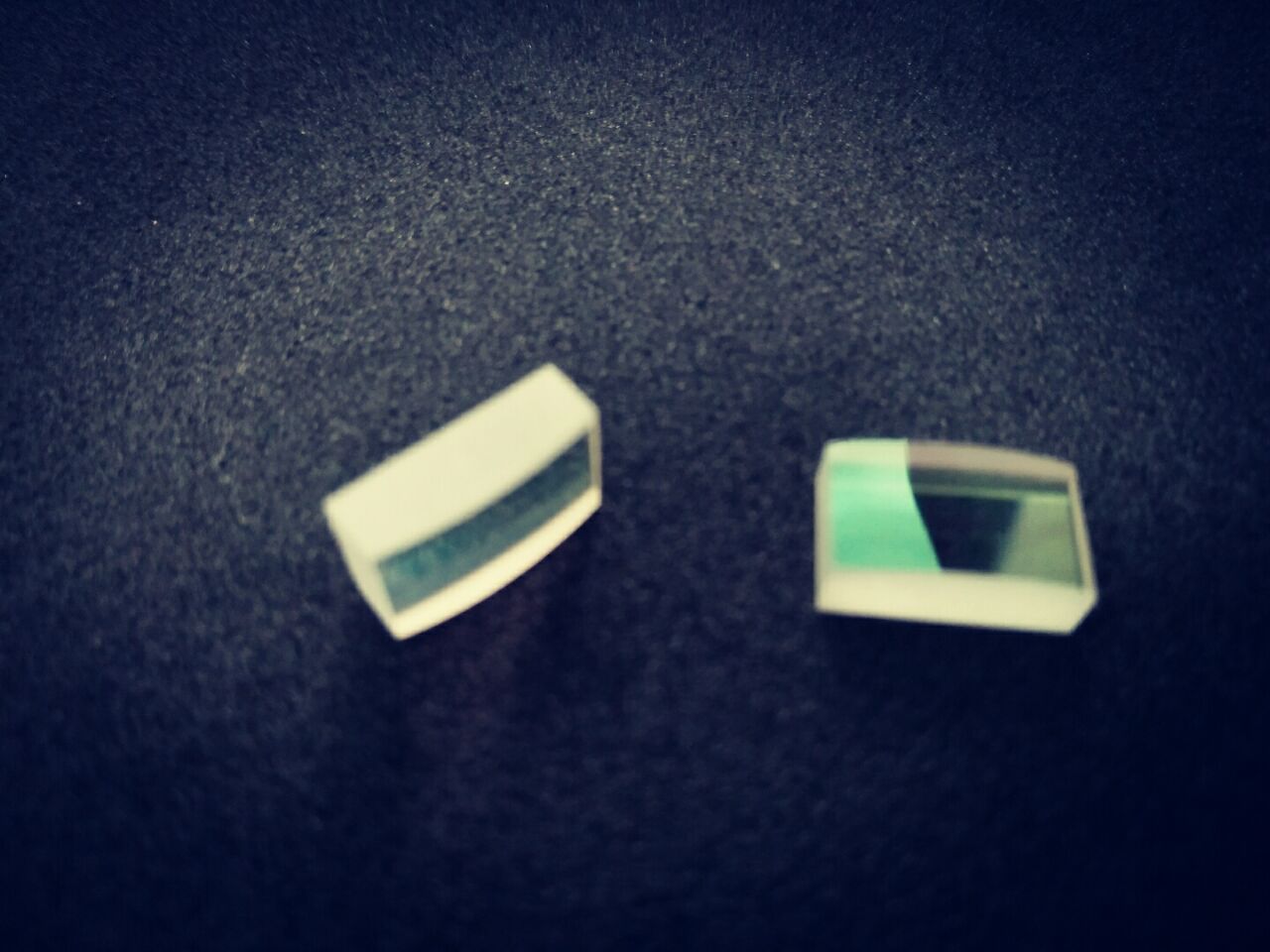

Optical Cylindrical Lenses

Yutai's cylindrical lenses are great optical components for requiring one-dimensional shaping of a light source.They are manufactured from fine annealed glass and offered in either rectangular or Circular,plano-concave or plano-convex configurations, which are meant to expand or focus light, and they can be coated with a variety of multi-layer antireflection coatings.

Share this:

Inquiry Now

Product Description

Cylindrical lenses are used to provide focusing power in one section only. For illumination or detection of light from line sources. Also used to anamorphic compression of beams and images. Especially widely used to anamorphic compression of LD (laser diode) output beam.

What are the applications of K9 cylindrical lenses?
Laser systems: for beam shaping, beam expansion or focusing.
Imaging systems: to correct dispersion or to realize specific optical effects.
Optical measurements: for interferometers, spectrometers and other equipment.

Specifications:
Material:optical glass
Surface Figure:λ/2
Diameter Tolerance：+0.1, -0.1 mm
Thickness Tolerance：±0.2 mm
Clear Aperture>85%
Surface Quality：60-40 scratch and dig
Protective Bevel：0.25 mm x 45°
Coating: Specified by customers
