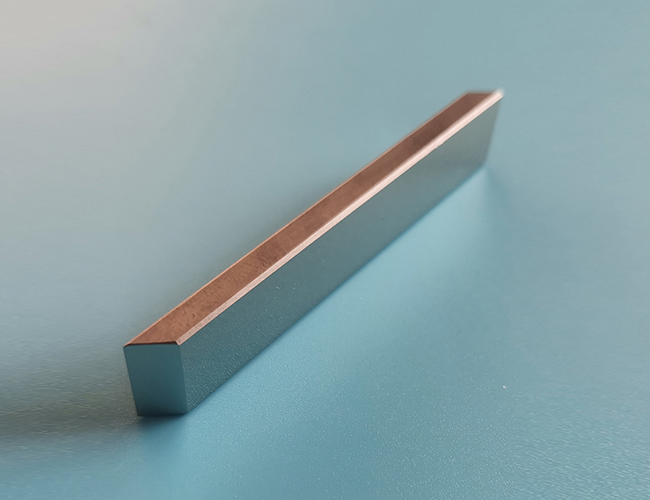

Infrared Dove Prism
Infrared dove prism is a type of dove prism specifically designed for the infrared wavelength(typically 700 nm to 14 μm), and is used in infrared optical systems (such as thermal imaging, laser processing, spectral analysis, etc.). The core challenge lies in material selection and coating optimization to ensure high transmittance, low absorption and good thermal stability.
Share this:
| What materials of infrared dove prisms can Yutai Optics provide? | ||||
| Material | Transmission Range (um) | Refractive Index (nd) | Characteristics | Applicable Laser |
| Fused Silica | 0.18-2.2 | 1.46 | Only applicable to NIR (<2.5 μm) | Nd:YAG (1064 nm) |
| Silicon | 1.2-7.0 | 3.42 (@5 μm) | High refractive index, suitable for mid-infrared | CO₂ (10.6 μm) |
| Germanium | 2.0-14.0 | 4.00 (@10 μm) | High refractive index, anti-reflection coating is required | CO₂ (10.6 μm) |
| ZnSe | 0.5-18.0 | 2.40 (@10 μm) | Wide band, low absorption, high damage threshold | CO₂, quantum cascade lasers |
| CaF2 | 0.13-10.0 | 1.39 (@5 μm) | Low refractive index, suitable for ultraviolet to mid-infrared | MIR laser |
