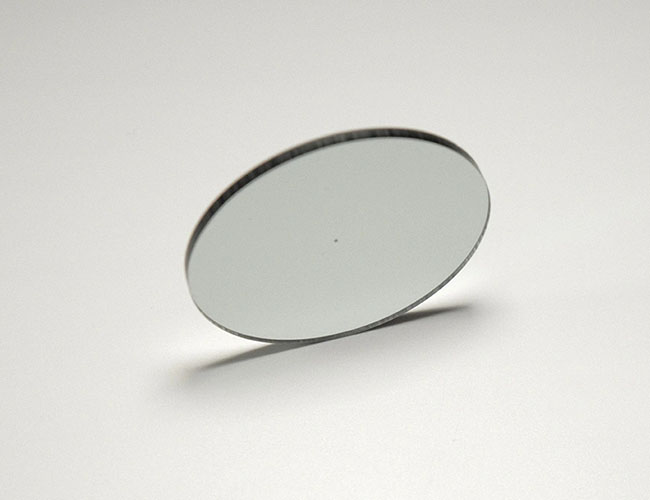

VIS Neutral Density (ND) Filters

In the visible wavelength (typically 380-750 nm), Absorptive ND filters need to be designed to ensure uniform attenuation of the light intensity across the entire wavelength while minimizing the color shift (i.e., remaining “spectrally neutral”).
Share this:
 Facebook  Twitter  LinkedIn  Google+  Addthis
Inquiry Now
What are the core characteristics of VIS neutral density filters?
Spectral Neutrality: ideally, ND filters have uniform transmission for all wavelengths in the visible range (actual products may have small deviations, especially at marginal wavelengths such as deep red or deep blue).
Attenuation range: common optical densities (OD) are 0.1-4.0 (transmittance from 80% to 0.01%), higher ODs require multi-layer combinations or special materials.
Surface quality: optical grade surface (no scratches, bubbles)

What materials are commonly used for VIS neutral density filters?
Germany Schott: NG series (e.g. NG4, NG9): borosilicate glass doped with iron, nickel and other metal ions, excellent spectral neutrality, high temperature resistance.
Hoya ND series.
Chinese materials: AB series materials.
Russian materials: HC series.
